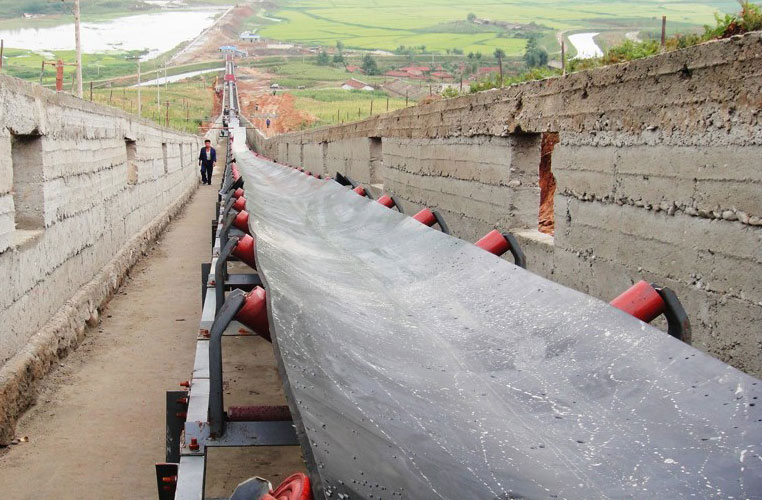

Long distance belt conveyor is mainly used for Long distance conveying whose dip angle is less than 18°,it can be used for horizontal transportation, tilted upward and downward sloping transport. It is widely used in mining, coal industry, transportation, water and electricity, chemical industry due to its advantage of large throughput, simple structure, convenient maintenance, low cost and high universality.
Contact Uswe use hydraulic automatic takeup to meet the request of the different stretching force in lunch and normal operation, besides, it can be maintained during operation to reduce the mainte nance cost.
The use of integration system made up by intellectualized system, ZYJ hydraulic takeup and frequency converter make sure of the excellent starting,braking and power balance.
| Model | Width (mm) | Dip angle (°) | Speed (m/s) | Conveying capacity (t/h) |
| B650 | 650 | -15°~18° | 0.8~2.5 | 150~390 |
| B800 | 800 | -15°~18° | 1.0~2.5 | 300~600 |
| B1000 | 1000 | -15°~18° | 1.6~3.15 | 500~1200 |
| B1200 | 1200 | -15°~18° | 1.6~3.15 | 900~1800 |
| B1400 | 1400 | -15°~18° | 2.0~4.0 | 1500~3200 |
Tips: 1.The conveying capacity in the chart is calculate out by the situation when horizontal transport and the angle of move θ is 20°,the trough angle of idler λ is 35°,the delivery value under your circumstance can be carried out by the CAD program designed by our company;
2.The recommanded speed in the chart shall be the standard ones such as 0.8 、1.0、1.25、1.6 、 2.0 、 2.5、3.15 、 3.5 、 4.0 and so on;
3.If your situation is over the number value in the chart, please inform our technology department.
