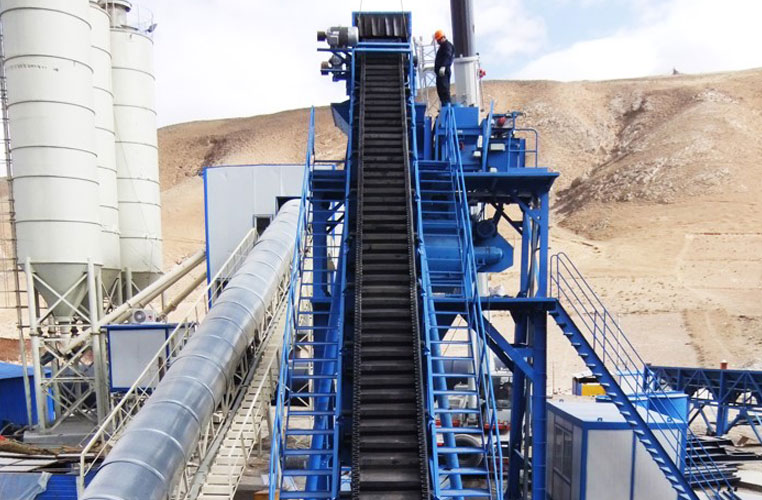

This equipment is mainly used in dip angle between -25°~ 30°. Except of the 60°deep-trough idler,you can optionally add stopping and antiskid device、KPZ Self cooling disc brake device and BSD broken belt arresting device according to the slope
Contact UsBSD Broken belt arresting device can work in the whole belt and can grab the upper belt and the lower belt at the same time. Provided protection for the safe operation of belt conveyor with large angle, long distance and large capacity.
KPZ Self cooling disc brake device can achieve controllable brake to avoid the conveyor belt "stacking" during the breaking due to the sharp change in tension.
| Model | Width (mm) | Dip angle (°) | Speed (m/s) | Conveying capacity (t/h) |
| B650 | 650 | -25°~30° | 0.8~2.5 | 100~280 |
| B800 | 800 | -25°~30° | 1.0~2.5 | 200~450 |
| B1000 | 1000 | -25°~30° | 1.6~3.15 | 350~800 |
| B1200 | 1200 | -25°~30° | 1.6~3.15 | 630~1250 |
| B1400 | 1400 | -25°~30° | 2.0~3.5 | 900~2300 |
Tips:1.The conveying capacity in the chart is calculate out by the situation when horizontal transport and the angle of moveθis 20°,the
trough angle of idler λ is 60°,the delivery value under your circumstance can be carried out by the CAD program designed by our
company;
2、The recommanded speed in the chart shall be the standard ones such as0.8 、 1.0、1.25、1.6 、 2.0 、 2.5、3.15 、 3.5 and so on;
3、If your situation is over the number value in the chart, please inform our technology department.
