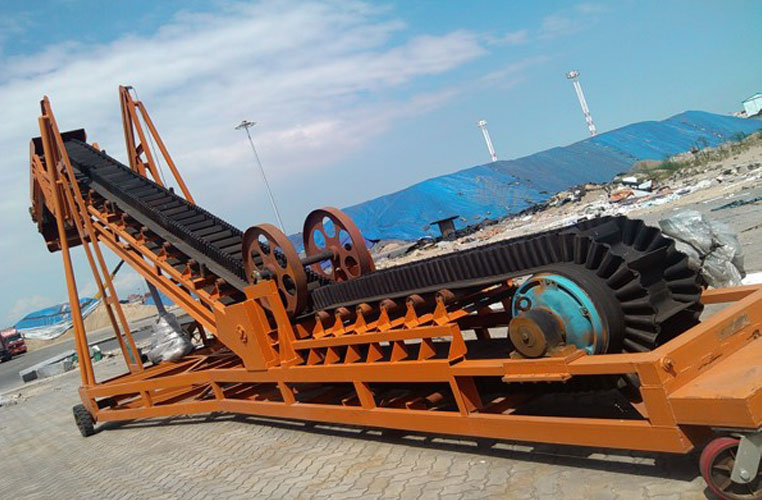

Belt conveyor of corrugated sidewall is mainly used in the dip angle between30°~90°to transport bulk material. The sidewall can save a lot cover area and completely get to the height which ordinary belt and pattern belt conveyor cannot reach.
Contact Us| Width (mm) | Side height (mm) | Speed (m/s) | Dip angle(°) | Max capacity (m³/h) | Power (Kw) |
| 50 | 80 | 0.8~2.5 | 30°~90° | 78 | 1.5~22 |
| 120 | 104 | ||||
| 160 | 130 | ||||
| 650 | 80 | 118 | 1.5~30 | ||
| 120 | 156 | ||||
| 160 | 210 | ||||
| 800 | 120 | 248 | 1.5~55 | ||
| 160 | 340 | ||||
| 200 | 370 | ||||
| 240 | 520 | ||||
| 1000 | 160 | 465 | 4.0~75 | ||
| 240 | 518 | ||||
| 260 | 708 |
Tips: 1.The largest conveying capacity Q is underβ=30°with the maximum belt speed and the minimum distance of the spacing board,the delivery value under your circumstance can be carried out by the CAD program designed by our company;
2.The recommanded speed in the chart shall be the standard ones such as0.8 、 1.0、1.25、1.6 、 2.0 、 2.5and so on;
3.If your situation is over the number value in the chart, please inform our technology department.
